Structure introduction:

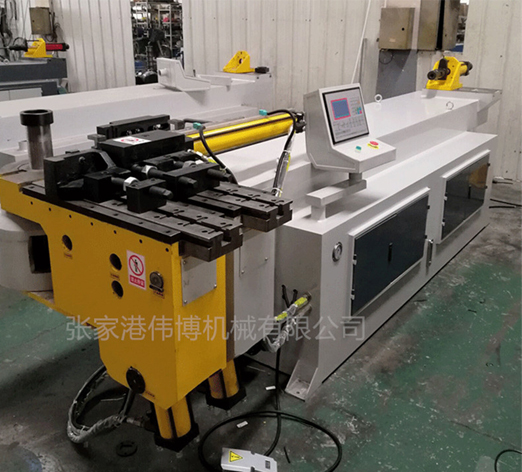

The overall structure of DW89NC semi-automatic pipe bending machine is composed of nose, bending arm, chassis, hydraulic system, control system and other parts.

1. Bending angle setting

It can be arbitrarily set to the angle you want to bend from 0-180 degrees, and the overall operation of the equipment can be controlled by inputting only on the control panel.

2. Transmission system

The main oil cylinder is fixed in the machine head and drives the curved arm to bend through the rack and pinion.

3. Clamping mechanism

The clamping is composed of three-hole plate and two-hole plate. The principle is the lever principle. The pipe is not easy to slip when the pipe is stable and firm.

4. Oil cooling system

The semi-automatic pipe bending machine is cooled by water, and the cooling effect is good

product advantages:

1. The rack and pinion rotate, the transmission is reliable, and the operation is stable;

2. Low noise and low energy consumption;

3. Exquisite structure and convenient operation;

4. The bending precision is high, suitable for mass production and processing.
