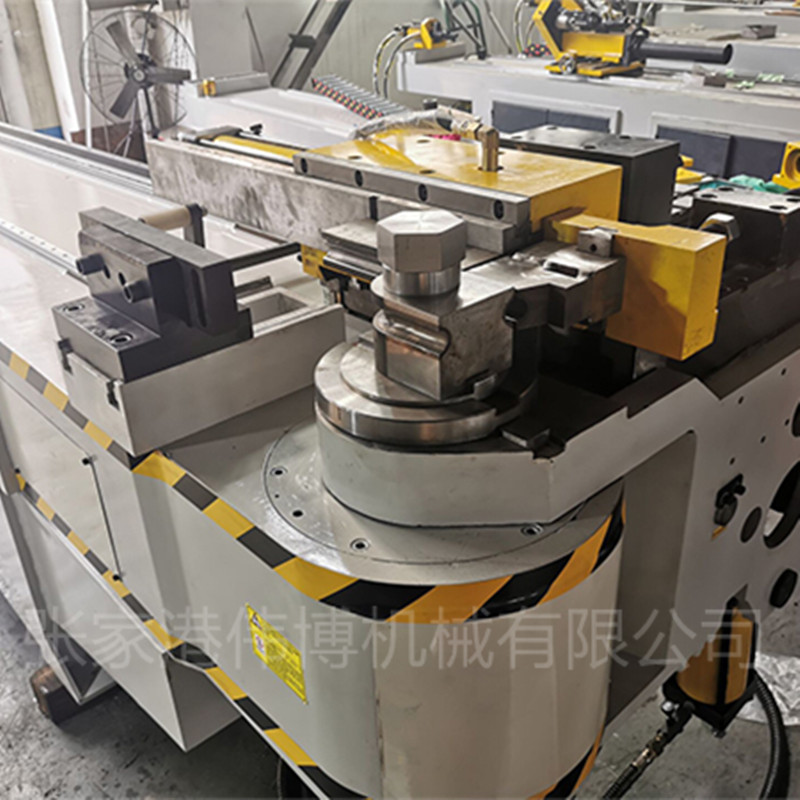

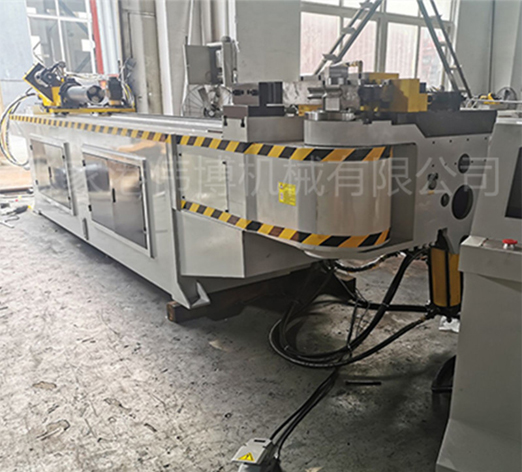

CNC hydraulic pipe bending machine can greatly improve the cutting speed and reduce labor. The equipment is reasonably designed, easy to operate, easy to learn, and its market share has steadily increased. The automatic pipe cutting machine makes pipe cutting so efficient.

1. Standard display text: Chinese/English switch. (Other text can be changed as needed)

2. The program memory capacity of large bends is 1000 groups, and each group can be programmed with 16 bends. (expandable)

3. Directly input the pipe bending processing parameters, the machine can be single-stepped and paused during automatic operation, so that manual intervention can be performed when bending special pipe fittings, and automatic operation can also be resumed. At the same time, it has a pause function, with automatic and manual functions. After one cycle, the switch is used to start the next cycle, and the emergency stop button is used when an emergency stop is required.

4. The memory storage time of the operation program and the pipe bending program is unlimited, and the program will not be lost due to power failure or long-term non-use.

5. While the machine is performing automatic processing, the controller can still be used to input or edit programs.

6. With XYZ coordinate value to YBC processing value conversion function, it is convenient for the operator to use.

7. The pipe bending program can set a total of ten speeds of 0-9 for each axis in each processing step, so that it can be used flexibly for different work objects and improve work efficiency. There is also an external speed knob to reduce or increase the processing speed at any time as needed.

8. When automatic, it has the functions of back-pull feeding and reciprocating feeding for switching to meet the processing needs of different pipe fittings.

9. Equipped with processing volume and processing time counting function.

10. Using the origin system, restart the machine every morning or after a break, without complicated procedures to find the origin of each axis, you can immediately enter the working standby state.

11. The screen synchronously displays the position status and bending angle of each action axis of the machine.

12. The control program has a textual display function to automatically detect errors and countermeasures. Messages of machine failures or illogical operations are directly displayed on the screen, with instructions for repairing methods to prevent human operation errors from damaging the machine and relatively reducing maintenance. difficulty. The above automatic detection alarm message records can be automatically saved for future maintenance reference.

13. The automatic or manual mode setting function can be set according to the nature of the work, and a variety of different work modes can be set, such as whether there are different states such as heart penetration, auxiliary push, etc., to improve production efficiency.

14. A number of delay parameter setting values can be set appropriately for each action axis to meet various bending requirements.

15. With automatic detection function of each button and circuit output/input board, it is easy to find out the possible fault location.

16. The machine is equipped with an automatic lubrication system to protect the transmission parts of the machine and improve the service life of the machine.

17. The machine control adopts closed-loop control.
