A brief description:

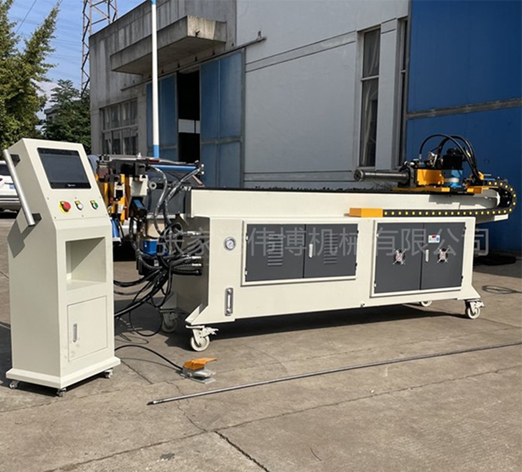

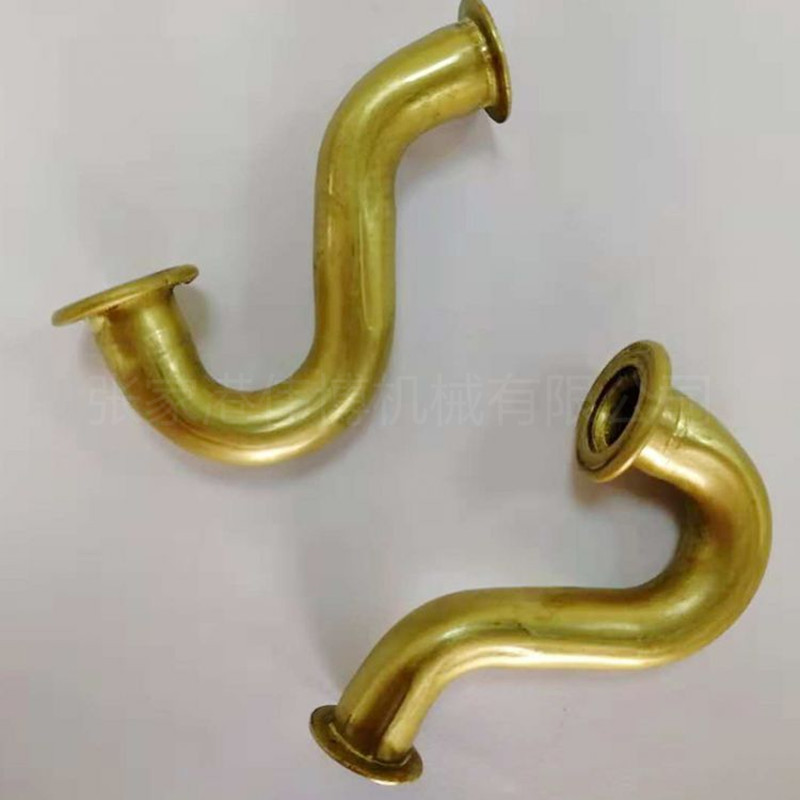

DW-38CNC This equipment is a CNC automatic pipe bending machine. It is equipped with a full-function device for bending three-dimensional space pipe fittings, and the entire pipe bending process is automatically completed by inputting the program. The whole machine has the characteristics of convenient operation, stable performance, high work efficiency and high safety factor, and is an ideal equipment for the pipe fittings processing industry.
Suitable material: iron, stainless steel, galvanized pipe
15371891344
1. Features of the machine:
1. The electronic control system adopts numerical control panel control, hydraulic drive, and has a variety of prefabricated bending angles.
2. Compensation value, speed and demoulding clearance can be set for each elbow according to the material change.
3. Chinese subtitle display, man-machine dialogue operation, manual and semi-automatic operation modes can be selected arbitrarily, and the mobile foot switch has both automatic and emergency stop functions.
4. The double-ended elbow improves the bending processing efficiency of the pipe, and ensures the flatness of the pipe elbow under the same vertical plane.
5. Equipped with a large-capacity cooling system to effectively control the working temperature.
6. Decomposition action can be selected in actual pipe bending, observe the interference point, modify the action, and improve the efficiency.
Second, the structure configuration:
1. The main structure of the machine is welded by high-quality steel plates, with high strength and high rigidity.
2. The structural parts are derusted by sanding and sprayed with anti-rust paint.

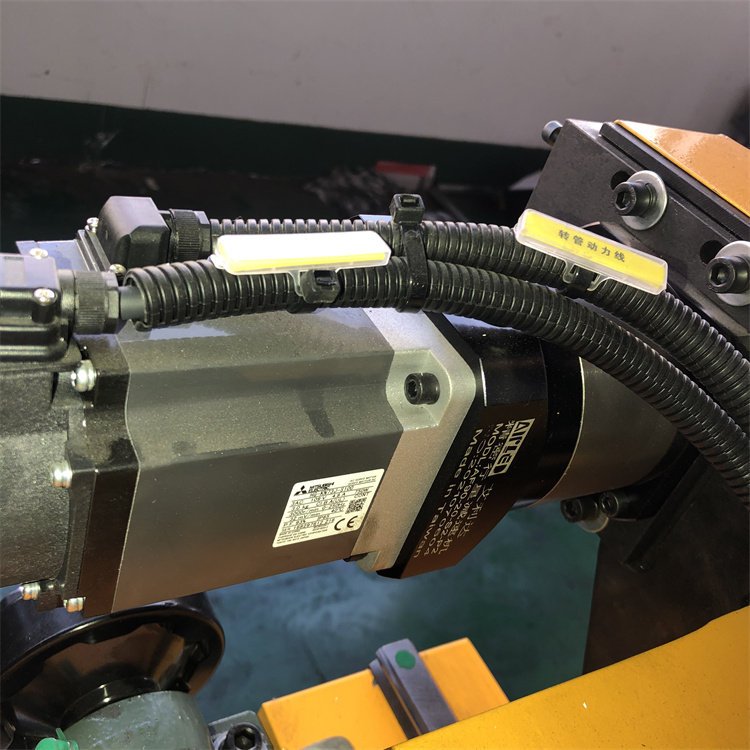

3. Adopt NC programming machine imported by Delta, with compact structure, high precision and long service life.
4. Proximity switches and encoders are Japanese "OMRON" Omron and Japanese "NEMICOM" internal control (2000P/R) with sensitive action and high precision.

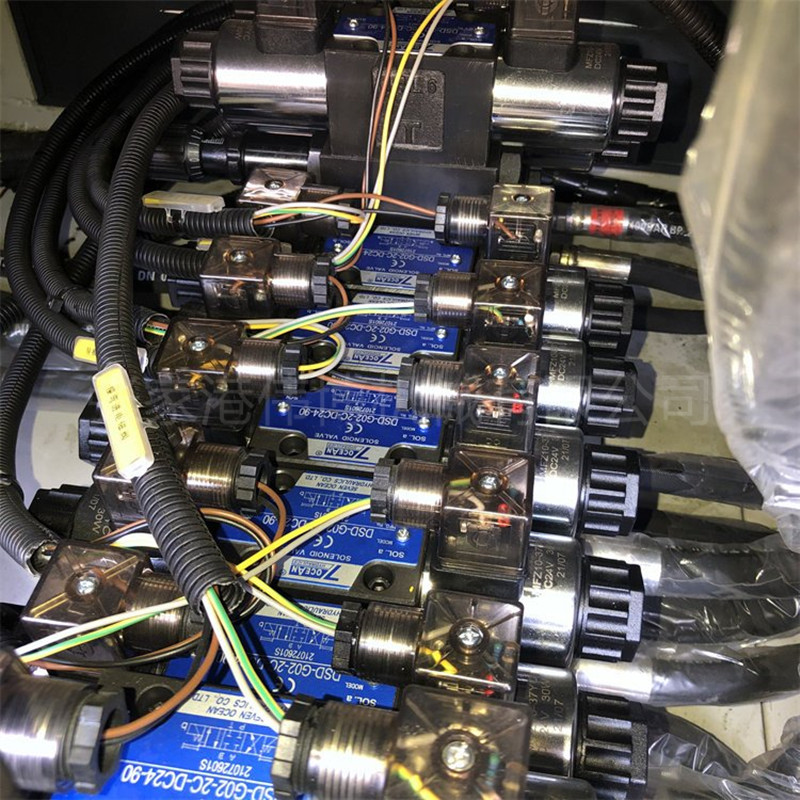

5. The oil pump and solenoid valve are all from the famous Taiwan brand "Yuken Hydraulic", and the oil level is clearly and intuitively displayed.
6. The motor is specific to our manufacturer: the supplier is required to use imported accessories such as "human-oriented bearings" to improve its own quality and prolong its service life.

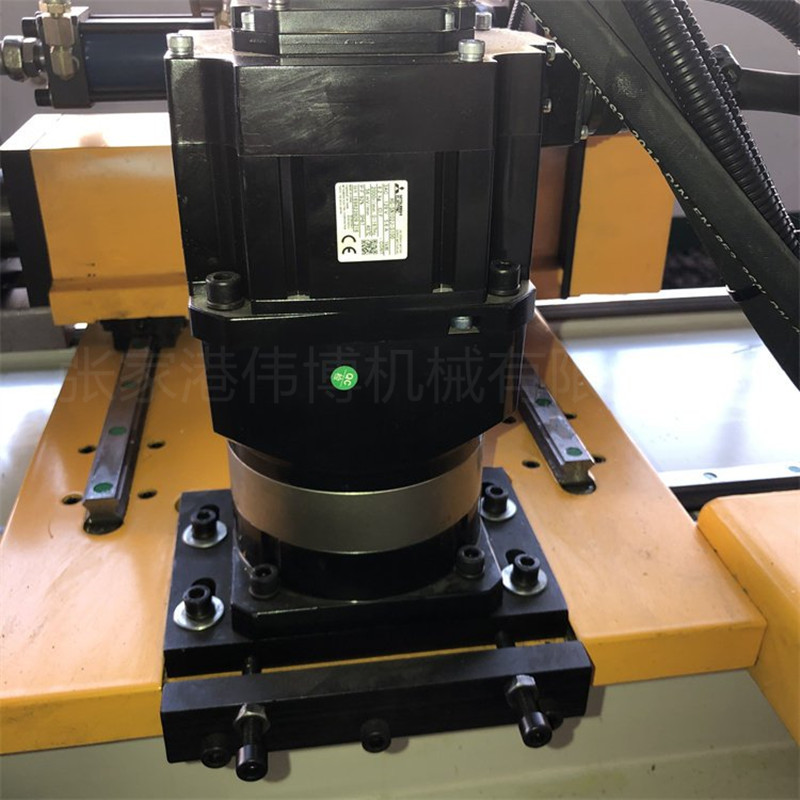

Main Specifications | model: DW38CNC-2A-1S | Remark | |
Maximum bending diameter × wall thickness | ∅38mm×2mm | 1. The minimum bending radius is based on the pipe diameter ⒉.Maximum bending radius according to customer requirements 3. The maximum grommet length can be according to customer requirements | |
Maximum bending radius | R250mm | ||
Minimum bending radius | R≥1.5D | ||
Maximum bending angle | 190° | ||
Maximum feed length | 2200mm | ||
Feeding method | direct delivery pinch | ||
Speed of work | Speed of work | Max 150°/s | |
Turning speed | Max 200°/s | ||
Feeding speed | Max 1000mm/s | ||
Working accuracy | Working accuracy | 土0.1° | |
Spinning accuracy | 土0.1° | ||
Feeding accuracy | 士0.1mm | ||
Information input method | 1.coordinate(X.Y.Z) 2.work value(Y.B.C) | ||
Bending way | Hydraulic elbow | ||
Corner servo motor power | 400kw | ||
Feeding servo motor power | 1000w | ||
Pipe fittings allowable number of elbows | 50 | ||
Number of parts that can be stored | 500 | ||
Hydraulic motor power | 4kw | ||
system maximum pressure | 12 Mpa | ||
Machine size | 3900 x 900 x 1400mm | ||
machine weight | 1300kg |
