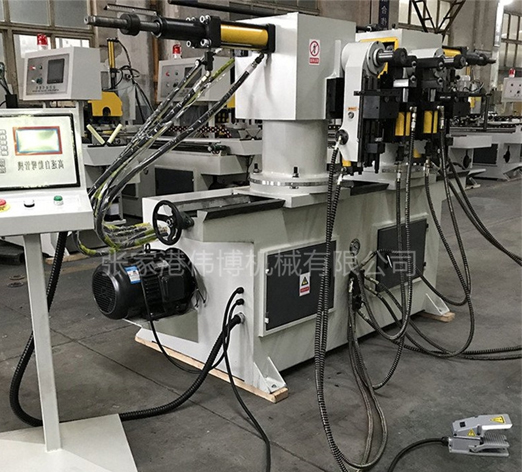

DW-38NC Hydraulic Bender

DW-38NC Double Head Hydraulic Pipe Bender High-speed double head double pipe machine, using NC control, makes your operation and programming easier. The whole machine has the characteristics of convenient operation, stable performance, high work efficiency and high safety factor. It is suitable for automobiles, seats, motorcycle bumpers and dining chair furniture such as office interior and exterior decoration. It is an ideal equipment for the pipe fittings processing industry.


Suitable material: iron, stainless steel, galvanized pipe


Inquiry
Consultation hotline

15371891344

  • Product overview
  • technical parameter

DW-38NC Double Head Hydraulic Pipe Bender High-speed double head double pipe machine, using NC control, makes your operation and programming easier. The whole machine has the characteristics of convenient operation, stable performance, high work efficiency and high safety factor. It is suitable for automobiles, seats, motorcycle bumpers and dining chair furniture such as office interior and exterior decoration. It is an ideal equipment for the pipe fittings processing industry.


1. Features of the machine:


1. The electronic control system adopts numerical control panel control, hydraulic drive, and has a variety of prefabricated bending angles.


2. Compensation value, speed and demoulding clearance can be set for each elbow according to the material change.


3. Chinese subtitle display, man-machine dialogue operation, manual and semi-automatic operation modes can be selected arbitrarily, and the mobile foot switch has both automatic and emergency stop functions.

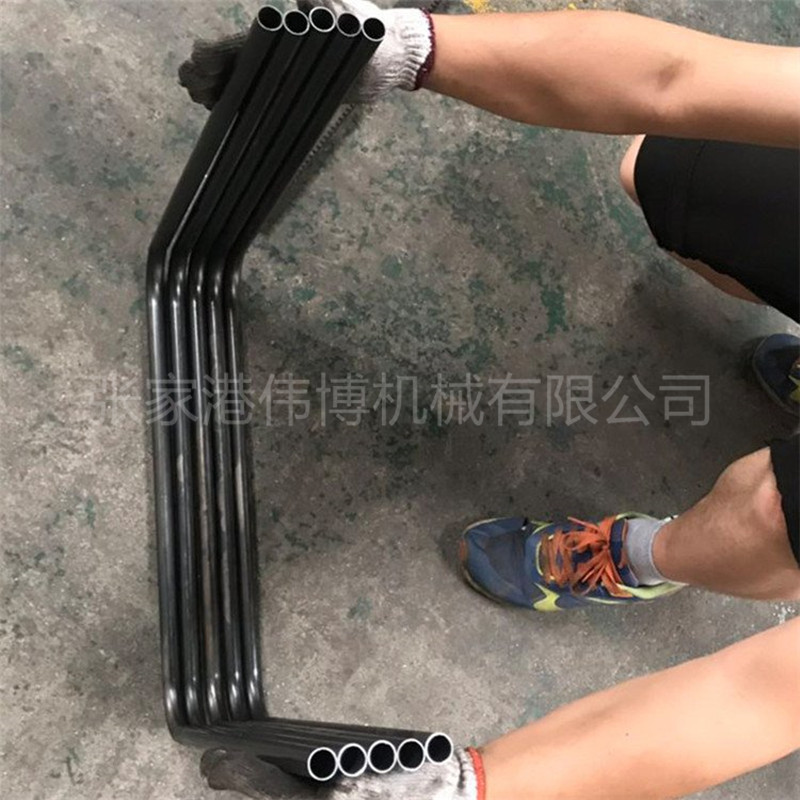

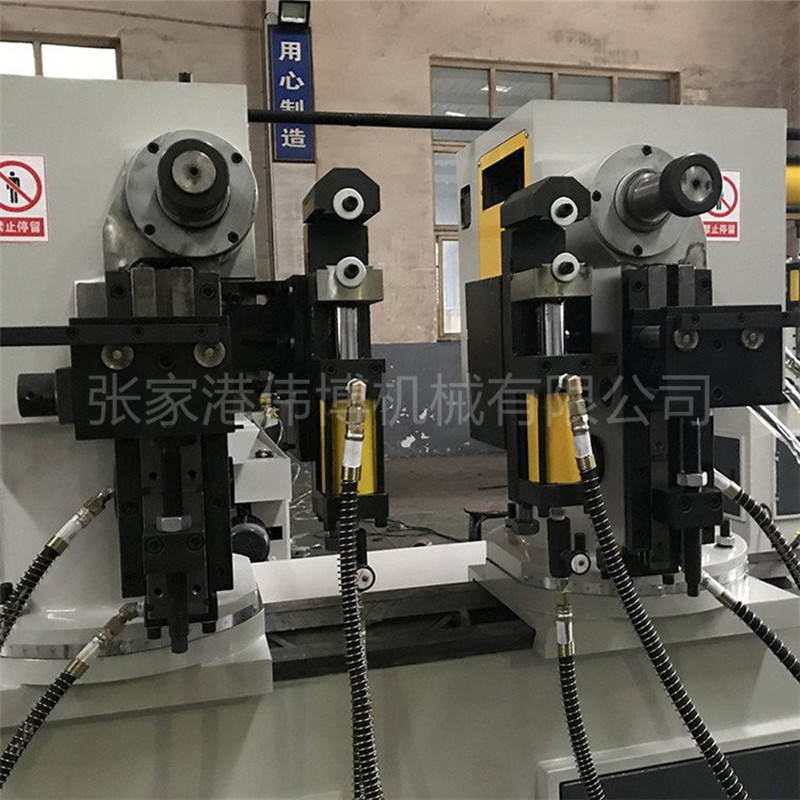

4. The double-ended elbow improves the bending processing efficiency of the pipe, and ensures the flatness of the pipe elbow under the same vertical plane.


5. Equipped with a large-capacity cooling system to effectively control the working temperature.


6. Decomposition action can be selected in actual pipe bending, observe the interference point, modify the action, and improve the efficiency.


Second, the structure configuration:


1. The main structure of the machine is welded by high-quality steel plates, with high strength and high rigidity.


2. The structural parts are derusted by sanding and sprayed with anti-rust paint.


3. Adopt NC programming machine imported by Delta, with compact structure, high precision and long service life.


4. Proximity switches and encoders are Japanese "OMRON" Omron and Japanese "NEMICOM" internal control (2000P/R) with sensitive action and high precision.


5. The oil pump and solenoid valve are all from the famous Taiwan brand "Yuken Hydraulic", and the oil level is clearly and intuitively displayed.


6. The motor is specific to our manufacturer: the supplier is required to use imported accessories such as "human-oriented bearings" to improve its own quality and prolong its service life.




item/parameterSW-38NCRemark
Maximum bending capacity∅38×2.0mm(A3")Pipe diameter × wall thickness
Maximum bending radiusR=200mm
Minimum bending radiusAccording to pipe diameterGenerally 1.5 times the diameter of the pipe
Maximum bending angle190°
Double bend center distance1450mmCan be customized to lengthen
Bending speed r/minMax 60°/sadjustable
Bending accuracy±0.15°
Bending wayHydraulic drive
Number of bends per tube20indivual
Chip maximum memory25Group
Oil pump motor power5.5KW
oil pressure12Mpa
Fuel tank capacity15OL32# mechanical oil is recommended
or YA-N46 hydraulic oil
Dimensions(L×W×H)2800x900x1300mmlength × width × height
