The hydraulic system automatic elbow machine market occupies a large share, mainly including the installation and maintenance of pipelines in production plants, warehouses, docks, buildings, railways, automobiles, etc. The automatic pipe bending machine needs to go through a series of adjustments and operations before use, as follows.

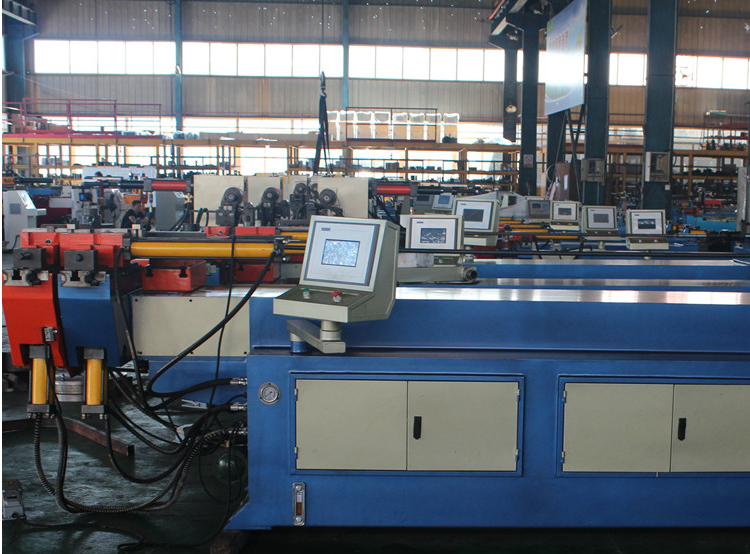

Automatic pipe bending machine

1. Adjustment of the machine tool:

In order to obtain the set elbow geometry, according to the outer diameter, wall thickness and bending radius of the elbow, select the appropriate mold and adjust the corresponding parts.

(1) Bending angle:

Input the required angle on the actual operation display screen according to different user needs (see electrical design instructions).

(2) Adjustment of clamping power slide mechanism:

In order to determine the self-locking system designed to clamp the working and living state, the clamping mechanism can be firstly controlled to boost the screw rod of the Chinese financial service institution, and the students of the two institutions can be continuously developed under manual control. Tighten the screw. The speed of the slider and information one-way throttle can be adjusted to synchronize it with the spindle system.

(3) According to the selected pipe material and mold, adjust the rotating part of the laterally moving screw so that the sleeve line and the bending part of the mold overlap.

(4) Adjustment of tail frame:

To adjust the tailstock, make the mandrel bend and partially coincide with the mold design, and then adjust the screw on the piston rod of the tailstock to extend the mandrel to the correct position of the student.

The above is the adjustment method of the automatic pipe bending machine. If you want to know more, you can go to Weibo Machinery!
