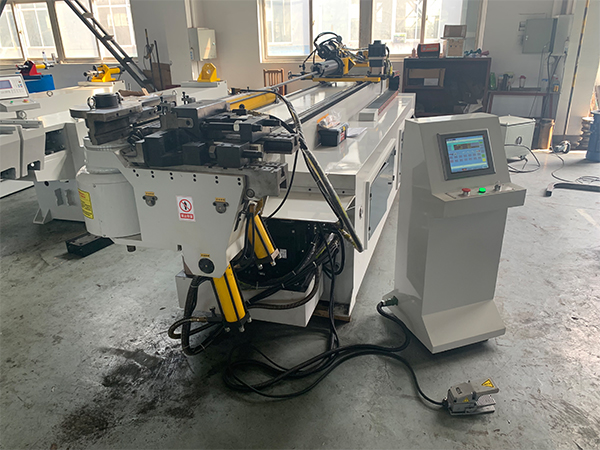

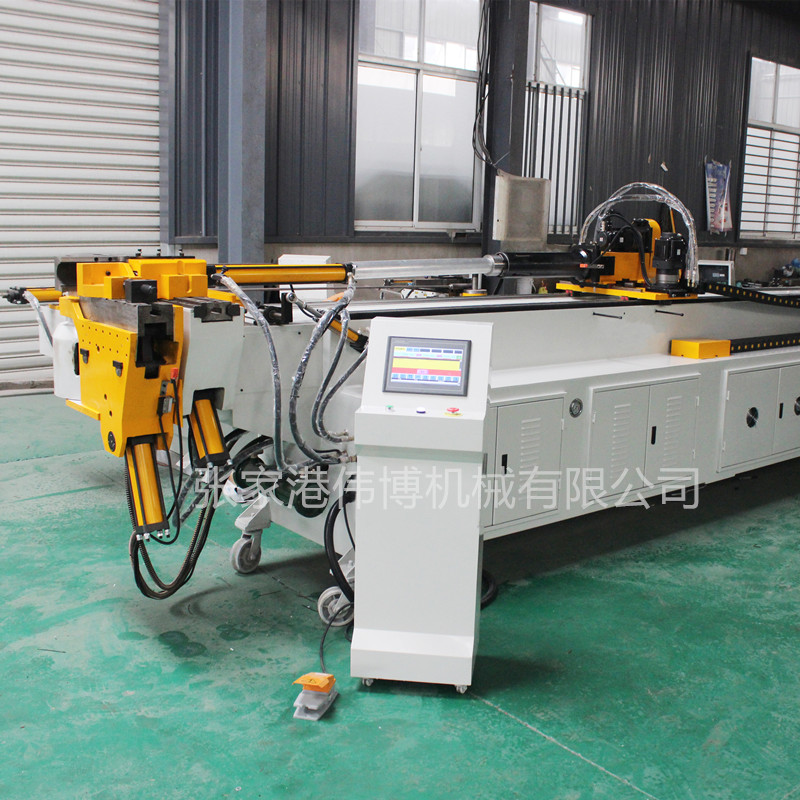

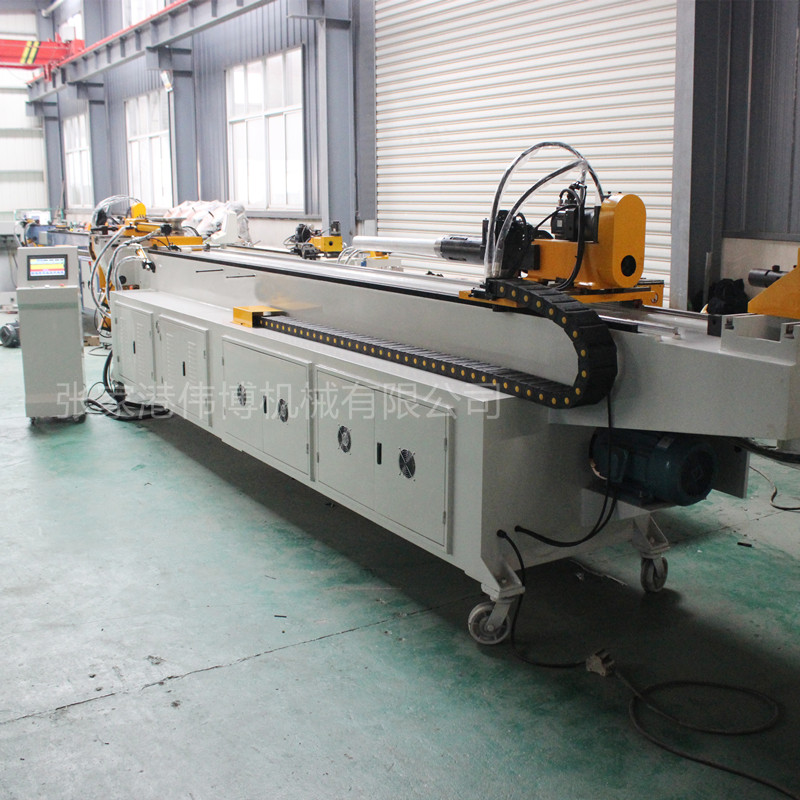

DW75CNC-2A-1S mechanical preparation and performance characteristics:

1. The feeding shaft, bending shaft and tilting shaft are driven by servo motors, with high precision and good stability.

2. The feeding method can be pinch feeding or direct feeding according to different needs.

3. The X.Y.Z. coordinates can be automatically converted into Y.B.C. processing values.

4. After the data is edited, there is a key protection to prevent the data from being arbitrarily modified.

5. The electronic control system is equipped with a heat exchanger to automatically dissipate heat. If necessary, a CNC air conditioner can be purchased to ensure the life of the electronic control system.

6. An automatic oil injection system can be installed as required to reduce the friction of the elbow, improve the life of the mandrel, and ensure the quality of the elbow (optional).

7. A printer can be connected to print out the data displayed on the screen (optional).

8. The machine can be equipped with a communication interface and a data machine, which is connected to Jinyuan Company through a telephone line, and remote control, real-time monitoring, software update, troubleshooting... (optional) are performed by engineers.

9. Decomposition action can be selected when bending test, observe the interference point, modify the action, and improve the efficiency.

10. The electronic control system adopts well-known Japanese controllers, such as servo drives, servo motors, positioning modules, CPU... produced by Mitsubishi Corporation, with strong performance.

11. The Mitsubishi super-large PLC can accommodate 2000 sets of file editing. If it is not enough, you can purchase another transmission software for installation.

12. Industrial computer type: The built-in WINDOWS operating system is matched with the Mitsubishi servo system. In addition to the advantages of Mitsubishi servo drive, it also has the convenience of file management of WINDOWS operating system, and can store files in hard disk or floppy disk, and infinitely expand the number of editing groups (optional).

13. It has the function of automatically detecting errors and faults, and displaying them on the screen, allowing the operator to easily remove obstacles.

14. All processing data are input by touch screen.

15. Compensation value, speed and demoulding clearance can be set for each bend due to different material changes.

16. For each bend between the same pipe, seven action sequences and 10 speeds can be programmed separately, allowing operators to use them together to improve work efficiency and reduce pipe interference points.

17. The touch screen can be switched between Chinese and English, and other languages can be displayed on demand.
