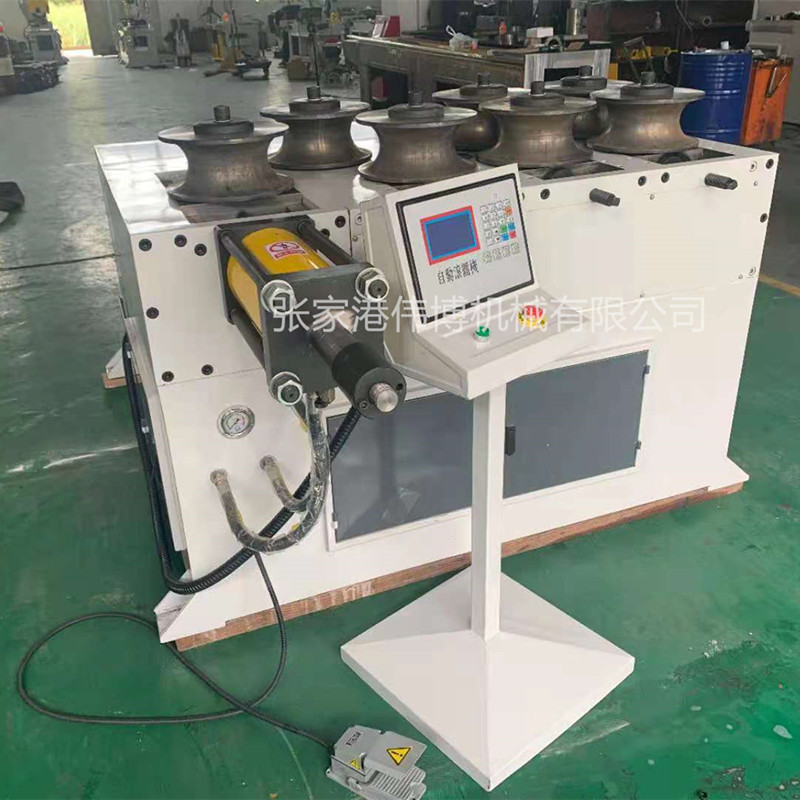

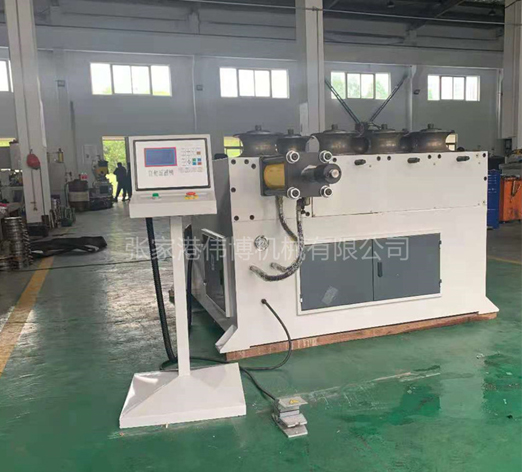

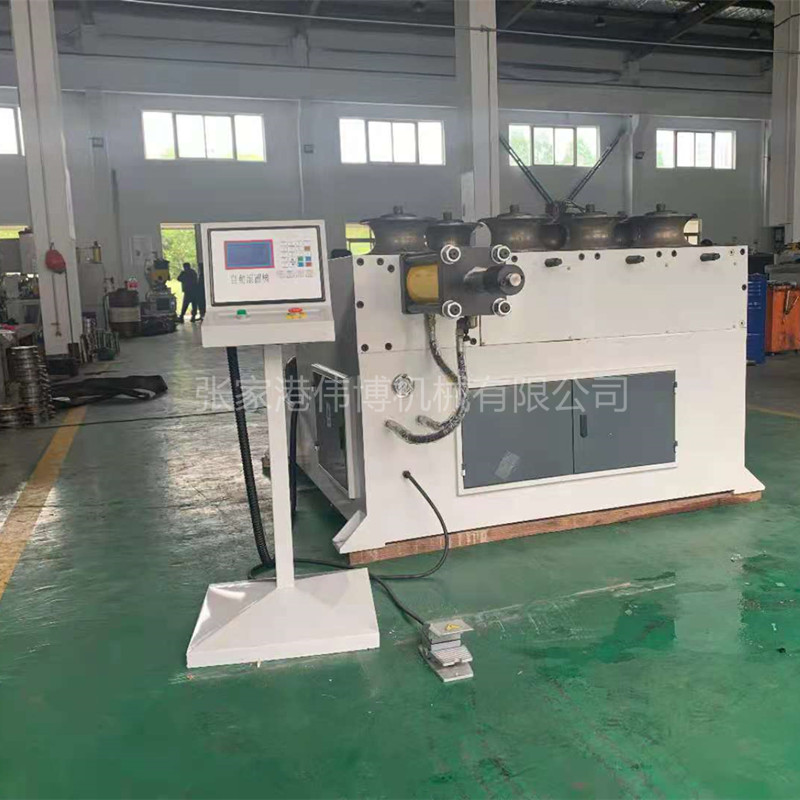

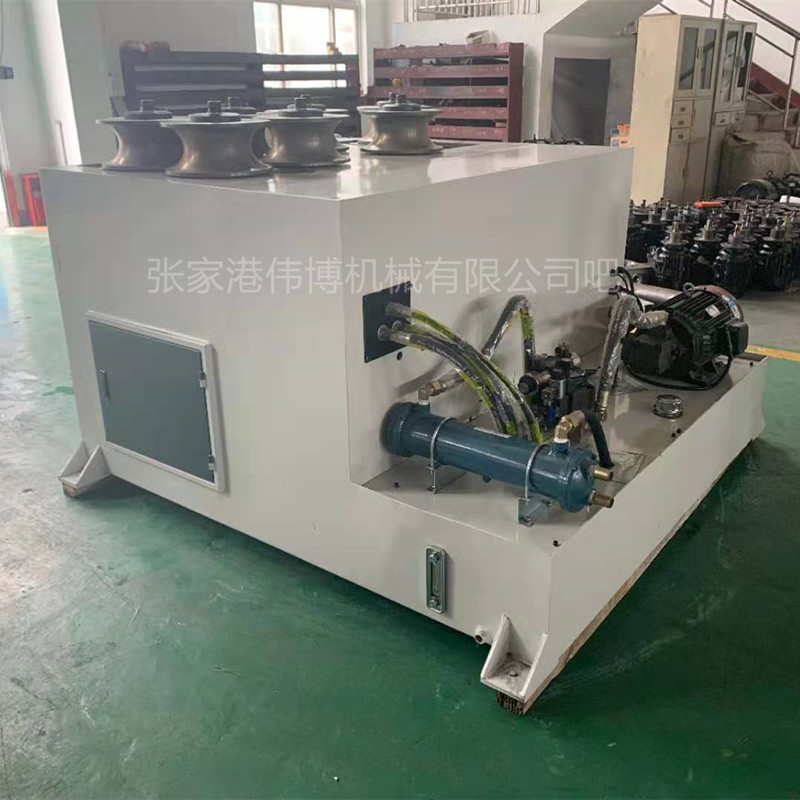

1. Mechanical transmission, compact structure and reliable performance.
2. It is not easy to slip, and thin-walled materials can also be bent.
3. Mechanically adjust the wheelbase. Without the labor of a hand wheel.
4. The transmission of the machine is stable, and only need to adjust and press to obtain circular, arc or spiral shapes with different curvatures.
5. Change the groove shape of the mold, and can process various metal profiles, such as angle steel, flat steel, round pipe and other special-shaped section profiles.
15371891344
1. Mechanical transmission, compact structure and reliable performance.
2. It is not easy to slip, and thin-walled materials can also be bent.
3. Mechanically adjust the wheelbase. Without the labor of a hand wheel.
4. The transmission of the machine is stable, and only need to adjust and press to obtain circular, arc or spiral shapes with different curvatures.
5. Change the groove shape of the mold, and can process various metal profiles, such as angle steel, flat steel, round pipe and other special-shaped section profiles.
| model technical parameter | ||
| The maximum bending section modulus of the profile Cm³ | 8 | |
| Bending speed r/min | 7 | |
| Profile yield limit MPa | 245 | |
| Motor Power KW | 3 | |
| Coiled tube | Maximum cross-section model | ∅38*4 |
| Minimum bending radius mm | 300 | |
| Coil square tube | Maximum cross-section model | 40*40*5 |
| Minimum bending radius mm | 300 | |
| Minimum section size | 20*20*2 | |
| Minimum bending radius mm | 150 | |
| Angle steel inside and outside bend | Maximum cross-section model | 40*4 |
| Minimum bending radiusmm | 300 | |
| Minimum section size | 20*3 | |
| Minimum bending radius mm | 200 | |
| Flat steel flat bend | Maximum cross-section model | 6*50 |
| Minimum bending radius mm | 250 | |
