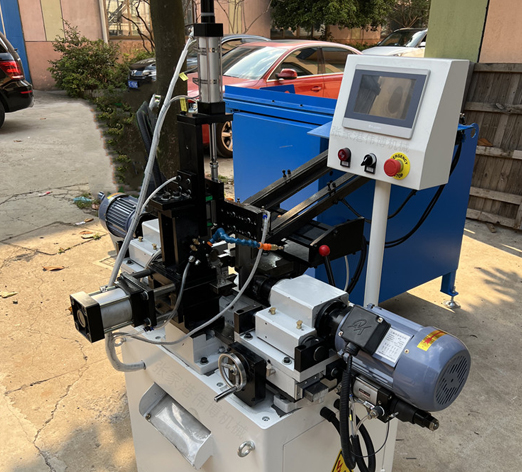

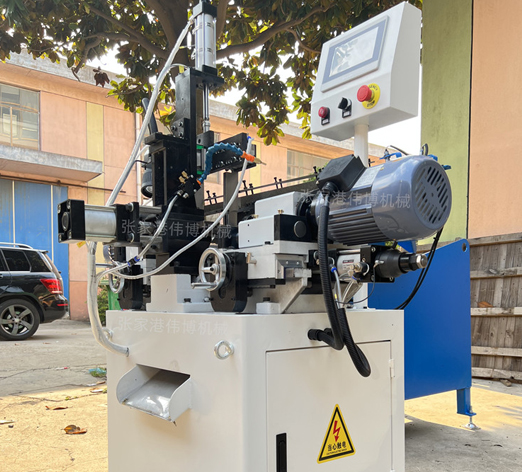

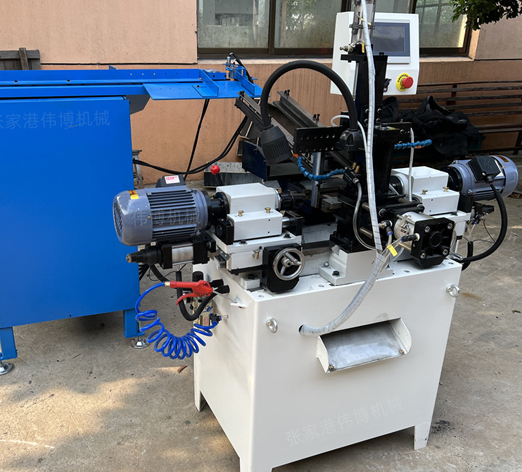

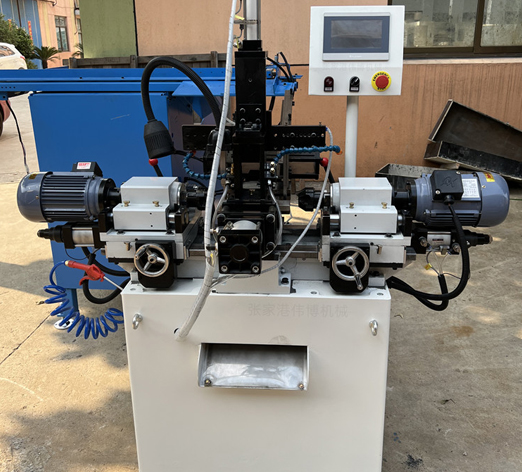

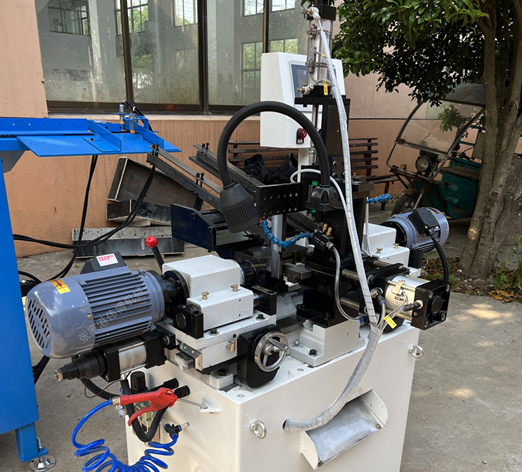

30CNC automatic bar double head chamfering machine can pour 7mm-30mm pipe fitting, wall thickness within 0.6mm-3mm; Bar material in the 4mm-18mm plane inverted Angle, more than 20mm only flat; The length is 30mm-100mm, and the inner and outer corners and flat ends can be completed at one time. The chamfering effect is smooth without burr, and the operation is simple and easy to learn.

Chamfering machine is a kind of small precision machine tool which is specialized for mold manufacturing, hardware machinery, machine tool manufacturing, hydraulic parts, valve manufacturing, textile machinery chamfering and milling, planing and other processing products burr. Rapid machine chamfering is the development trend of machinery industry. It overcomes the machining disadvantages of existing machinery and electric tools, and has the advantages of convenience, speed and accuracy. It is the best choice for chamfering metal objects. According to the required chamfer, it can be divided into straight chamfer and curve chamfer.

The characteristics of

1: From the Angle of the workpiece can be used for welding, do not need to do any processing. The thickness of any cutting material is 5-40mm, the minimum width is 70mm, and the minimum length is 150mm.

2: The Angle of the hypotenuse is within the range of 15 degrees to 50 degrees, and can be adjusted at will without the need to replace parts.

3: The pressure bar and the workpiece support parts can be adjusted up and down in the range marked with the scale.

4: The machine is equipped with four slots for easy handling and fixing of long and thick workpieces.

5: The flat beveling machine can operate the machine vertically or horizontally, and the workpiece that needs to be cut is tightly fixed

6: Can be from the left or right groove. The operation is flexible and convenient.

7: All circuit equipment is installed in the dust-free box, the machine can be safely operated.
