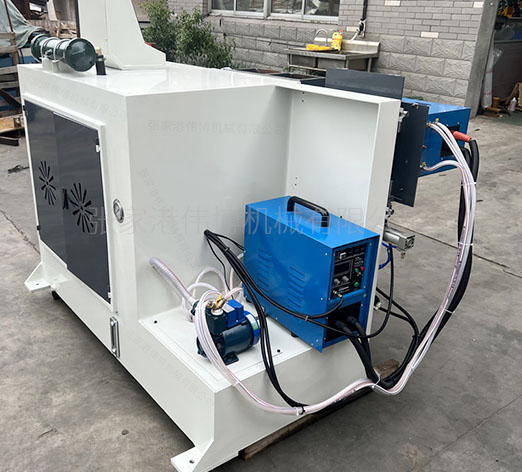

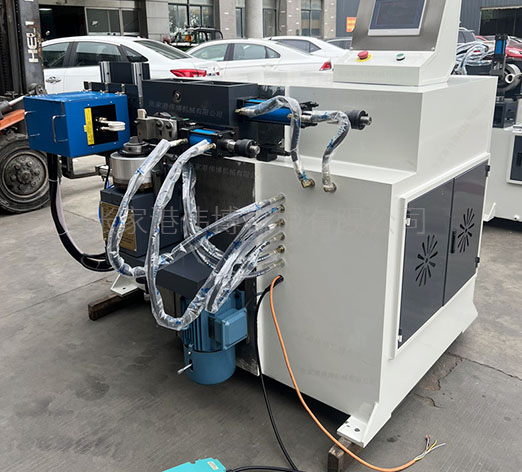

Vertical sealing and reaping machine

Inquiry
Consultation hotline

15371891344

  • Product overview
  • technical parameter

I. Main technical parameters:

Main technical parameters

FK-40 (S)

Range of processing

Φ10-Φ40 mm

Maximum sealing tube

Φ40×1.2

Tube wall thickness

0.5-1.8 mm

Power of motor

4 kw

Oil pump displacement

14L/min

System rated pressure

10Mpa

Efficiency of production

2000支/班

Hydraulic pressure oil

32#抗磨液压油(冬天)

46#抗磨液压油(夏天)

Machine weight approx.

1200 kg

Machine size approx

1560×700×970 mm

Two, performance characteristics:

The machine adopts imported hydraulic components, the electrical equipment adopts PLC control, simple structure, stable and reliable, suitable for all kinds of pipe fittings port seal, the mold is hard alloy. Three - piece tightening mechanism, microcomputer induction.

Iii. Principle Introduction:

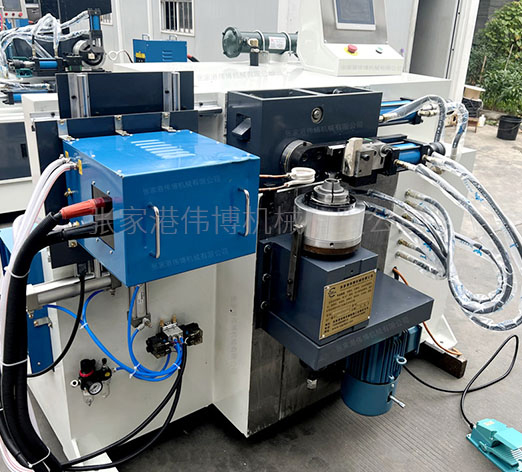

This machine is composed of main transmission mechanism, sealing mechanism, electrical system, hydraulic system and other main parts.

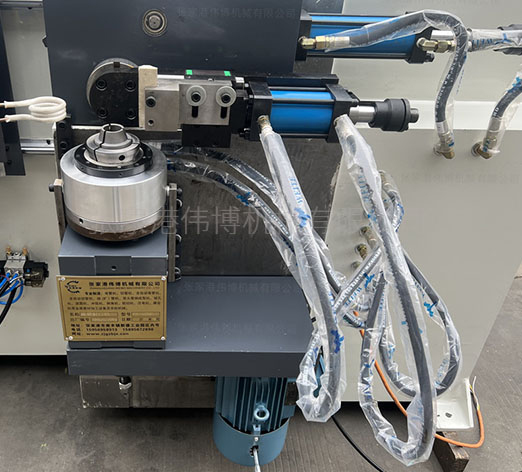

When the pipe touches the switch, the collet clips the pipe, the motor drives the collet to rotate, the sealing knife rises and seals, and the sealing knife returns after it reaches the position, the motor stops rotating, and the collet is loosened and reset.

Iv. Machine Overview:

FK40-WNC (S) sealing machine is one of the series of pipe end forming machines produced by our company. It adopts motor drive and hydraulic control and is suitable for pipe end sealing of ordinary steel, copper, stainless steel, steel, aluminum and other materials. It is mainly used for automobile, motorcycle, bicycle, baby carriage and furniture and other industries. It is the ideal equipment for pipe processing industry.

V. Configuration:

1. Main mechanical components and components:

a. The main structure of the machine is welded by high quality steel plate with high strength and steel degree.

b. The structural parts are removed by sand blasting and sprayed with antirust paint.

c. Adopt the PLC program machine imported by Delta Company, which has compact structure, high precision and long service life.

d. The proximity switch and encoder are internally controlled by Japan "OMRON" and Japan "NEMICOM" respectively, with stable performance.

e. The oil pump is the famous brand "Hetek". Solenoid valve from Taiwan famous brand "Chaotian hydraulic", oil level height has a clear and intuitive display.

f. AC contactor: imported "Shilin"; Stop button and start button are: Taiwan Tiande; Other electrical accessories: Chint Electric Appliances.
