Your current location : Home >> Products >> Pipe cutting machine

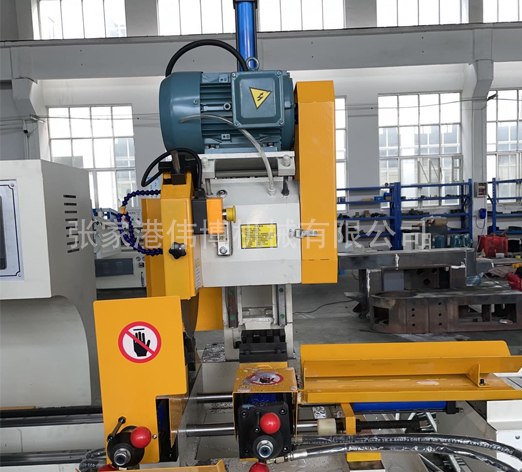

MC-425CNC Pipe cutting machine

MC-425CNC heavy-duty automatic feeding pipe cutting machine is specially designed, multi-group gear transmission is suitable for heavy-duty cutting, and the precision is stable. , Easy maintenance. The machine has a solid structure without material automatic shutdown, small vibration, long machine life and automatic circulation of coolant to ensure smooth cutting surface of the workpiece.

Inquiry
Consultation hotline

15371891344

  • Product overview
  • technical parameter

MC-425CNC heavy-duty automatic feeding pipe cutting machine is a kind of automatic feeding type automatic high-speed pipe cutting machine in the series of circular saw machines of our company. The automatic feeding function of the material, the use of a servo-driven feeding mechanism can stably and accurately control the blanking size, realize automatic operation, and fully automate automatic feeding, automatic clamping and automatic cutting. Special design, multi-group gear transmission is suitable for heavy cutting, and the precision is stable, the feeding system is carefully designed, and the feeding length is set to 6-800m/mz (multiple feeding is possible). PLC controller is used, no contacts, and maintenance is convenient. Automatic shutdown without material The structure of the table is firm, the vibration is small, and the machine life is long. The coolant circulates automatically to ensure the smooth cutting surface of the workpiece. The chips are centrally processed, and the maintenance is simple and easy. This machine is suitable for sawing various cross-sectional shapes of ordinary steel (low carbon steel), stainless steel and other metal pipes, and is an ideal sawing equipment for the pipe cutting industry.

MC-425CNC Automatic feeding pipe cutting machine
host motorC type 2/4 variable stage 4/5kwD type 4/6 variant 3.3/4kw
Spindle speed44/2222/16
cooling system1/8 horsepower automatic cooling cycle system
Applicable saw bladesSaw blade outer diameter 250-400mm Center hole distance¢ 32mm Pin hole 2×12×65
Clamp stroke160mm
Feed lengthStandard type: 6mm-900mm single stroke (multiple feeding possible)
work pressurework pressure 25-35kg/cm2
Oil pump motor3kw
Feeding accuracy±0.1
Feeding Servo Motor1kw
Mechanical weight1160kg
Mechanical Dimensions1300×1700×2950mm
